远地点Instruments field spectroradiometers are easy-to-use and cost-effective. — Simple, affordable absolute spectral measurement across a wide wavelength range in the lab and field

Easy-to-use, cost-effective measurement with USB interface.

Wavelength Range Options

Two wavelength range options are available: 340 to 820 nm(SS-110)and 635 to 1100 nm(SS-120)

Lab Measurements

Lighting quality is just as important as lighting quantity. In addition to measuring the total PPFD, the new Field Spectroradiometer splits light to individually measure each color intensity, or wavelength. Spectral output measurements can be used to maximize lighting efficiency, change the light characteristics to mimic seasonal changes, optimize visual appearance of displays, and many other applications.

Field of View Options

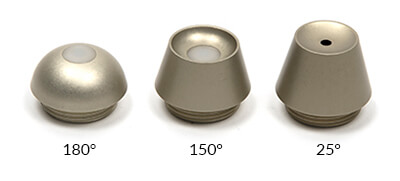

Three field of view (FOV) options are available: 180° (hemispherical FOV for measurement of incoming radiation, included), 150° (wide FOV for measurement of reflected radiation,AS-010 accessory), and 25° (narrow FOV for measurement of reflected radiation,AS-011 accessory).

Complete Package

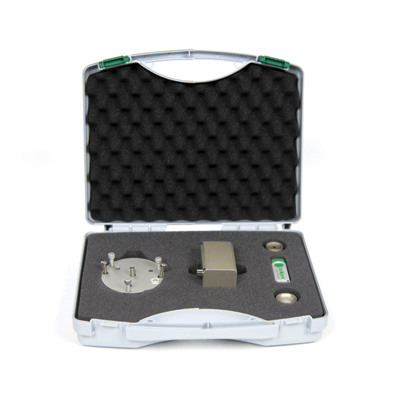

Package includes spectroradiometer and cosine-corrected detector mounted in the housing, 180° FOV head, AL-200 bubble-level, USB cable for computer interface, USB drive with required drivers and sofware (windows compatible, XP and later; Mac compatible, 10.10 and later), and carrying case.

Mounting Accessories

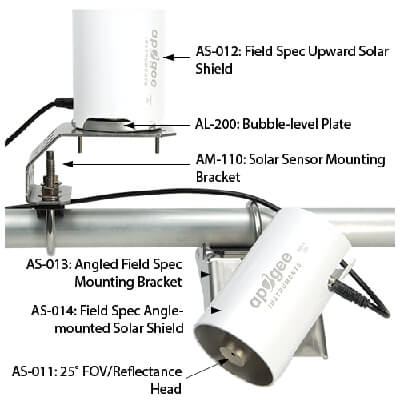

Upward-mounted:TheAM-110 Mounting Bracketfacilitates mounting the AL-200 leveling plate to a mast or pipe. The bubble-level in the included AL-200 leveling plate makes mounting simple and accurate. TheAS-012 Field Spec Upward Solar Shieldis designed to protect the spec from solar radiation when mounted upward.
Angle-mounted:TheAS-013 Angled Field Spec Mounting Bracketfacilitates angled mounting of the field spec. TheAS-014 Field Spec Angle-mounted Solar Shieldprotects the field spec from solar radiation when mounted at an angle.

Warranty and Support

Backed by a 1 year warranty and outstanding customer support.

Lab Spectroradiometers

Our PS series lab spectroradiometers can be foundhere >

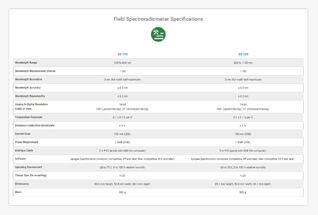

Specifications
Learn More

Videos
Learn More

Case Studies
Learn More

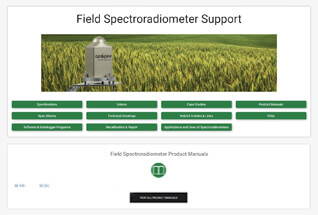

Support Info
Learn More

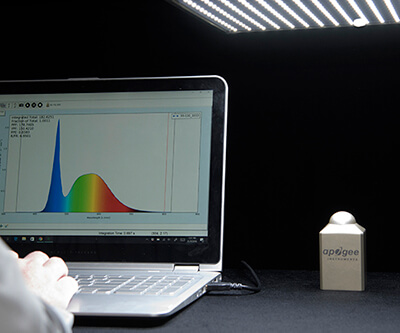

Image of field spectroradiometer Spectrovision software. — Simple, affordable absolute spectral measurement across a wide wavelength range in the lab and field

Easy-to-use, cost-effective measurement with USB interface.

Wavelength Range Options

Two wavelength range options are available: 340 to 820 nm(SS-110)and 635 to 1100 nm(SS-120)

Lab Measurements

Lighting quality is just as important as lighting quantity. In addition to measuring the total PPFD, the new Field Spectroradiometer splits light to individually measure each color intensity, or wavelength. Spectral output measurements can be used to maximize lighting efficiency, change the light characteristics to mimic seasonal changes, optimize visual appearance of displays, and many other applications.

Field of View Options

Three field of view (FOV) options are available: 180° (hemispherical FOV for measurement of incoming radiation, included), 150° (wide FOV for measurement of reflected radiation,AS-010 accessory), and 25° (narrow FOV for measurement of reflected radiation,AS-011 accessory).

Complete Package

Package includes spectroradiometer and cosine-corrected detector mounted in the housing, 180° FOV head, AL-200 bubble-level, USB cable for computer interface, USB drive with required drivers and sofware (windows compatible, XP and later; Mac compatible, 10.10 and later), and carrying case.

Mounting Accessories

Upward-mounted:TheAM-110 Mounting Bracketfacilitates mounting the AL-200 leveling plate to a mast or pipe. The bubble-level in the included AL-200 leveling plate makes mounting simple and accurate. TheAS-012 Field Spec Upward Solar Shieldis designed to protect the spec from solar radiation when mounted upward.
Angle-mounted:TheAS-013 Angled Field Spec Mounting Bracketfacilitates angled mounting of the field spec. TheAS-014 Field Spec Angle-mounted Solar Shieldprotects the field spec from solar radiation when mounted at an angle.

Warranty and Support

Backed by a 1 year warranty and outstanding customer support.

Lab Spectroradiometers

Our PS series lab spectroradiometers can be foundhere >

Specifications
Learn More

Videos
Learn More

Case Studies
Learn More

Support Info
Learn More

SS-110 Field Spec with included USB cable

SS-110: Field Spectroradiometer-340 to 820 nm

$2,772.00

SS-120 Field Spectroradiometer with USB cable

SS-120: Field Spectroradiometer-635 to 1100 nm

$2,772.00

am - 110太阳能传感器Mounting Bracket

AM-110: Upward-looking Spectoradiometer Mounting Bracket

$52.00

AP-001 Accessory Package

AP-001: Field Spec Reflectance Package

$132.00

AS-010: 150° FOV Head for Apogee Field Spectroradiometer

AS-010: 150° FOV/Reflectance Head

$46.00

AS-011: 25° FOV Head for Apogee Field Spectroradiometer

AS-011: 25° FOV / Reflectance Head

$46.00

AS-012: Upward Mounting Solar Radiation Shield for Apogee Field Spectoraradiometer with included three mounting screws

AS-012: Field Spec Upward Solar Shield

$46.00

AS-014: Field Spec Angle-mounted Solar Shield with included mounting nuts

AS-014: Field Spec Angle-mounted Solar Shield

$46.00

AS-013: Angled Field Spec Mounting Bracket

AS-013: Angled Field Spec Mounting Bracket

$57.00
