Apogee Instruments Red - Far-Red sensors combine two photodetectors designed to measure the wavelength ranges and peaks of red and far-red light, which influence photosynthetic and morphogenic activity. — Two-channel sensor for measuring the Red / Far-red ratio (RFR) for ecological applications, including the effect of spectral quality on phytochrome. The RF ratio influences plant height, leaf expansion rates, and other photobiology and plant morphogenic responses.

This sensor is a research-grade, cost-effective two-channel sensor for monitoring plant light environments, including calculation of the red to far-red ratio (red photon flux density / far-red photon flux density) and far-red fraction (far-red photon flux density / sum of red and far-red photon flux densities).

Spectral Response

The red - far-red sensor has a spectral range of 645 to 665 nm ± 5 nm (red) and 720 to 740 nm ± 5 nm (far-red). The spectral responses can be seen in the graph below.

Rugged, Self-cleaning Housing

The patented domed shapped sensor head (diffuser and body) facilitates runoff of dew and rain to keep the sensor clean and minimizes errors caused by dust blocking the radiation path. Sensors are housed in a rugged, anodized aluminum body and electronics are fully-potted.

Typical Applications

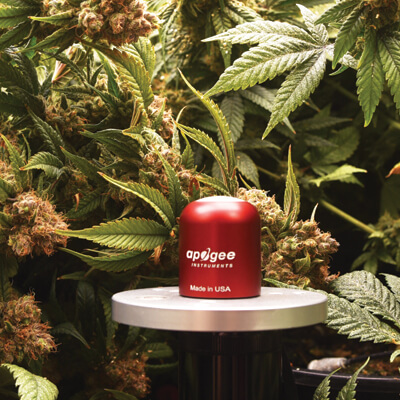

Applications include monitoring plant light environments, researching plant morphogenic activity, and photobiology studies.

Mounting

TheAL-120 Solar Mounting Bracket with Leveling Platefacilitates mounting the sensor to a mast or pipe. TheAL-100 Solar Sensor Leveling Plateis designed to level the sensor while sitting on a flat surface or mounting to a surface.

Output Options

Available as an analog output or in digital SDI-12 or Modbus communication protocols.

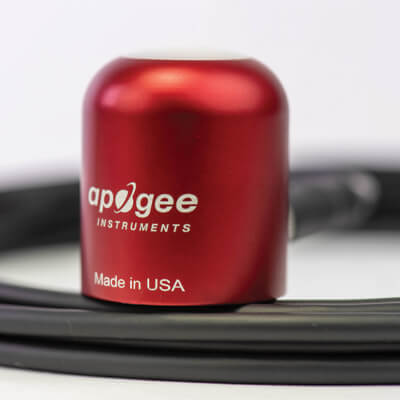

High Quality Cable

Pigtail-lead传感器特性IP68,玛丽ne-grade stainless-steelcable connectorsbuilt directly into the sensor head to simplify sensor removal for maintenance and recalibration. Cable is shielded-twisted-pair wire with a TPR jacket for high water resistance, UV stability, and flexibility in cold conditions.

Warranty and Support

All Apogee products are backed by an industry-leading four year warranty and outstanding customer support

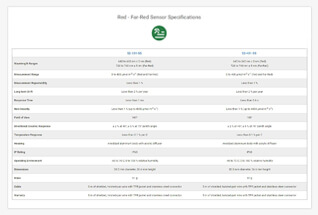

Specifications
Learn More

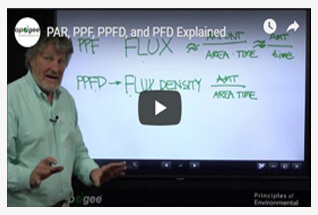

Videos
Learn More

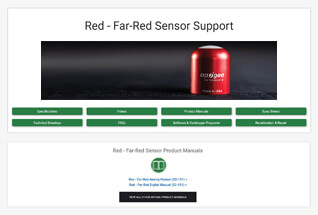

Support Info
Learn More

Graph showing the spectral response of the red - far-red sensor (spectral range of 645 to 665 nm ± 5 nm (red) and 720 to 740 nm ± 5 nm (far-red)). — Two-channel sensor for measuring the Red / Far-red ratio (RFR) for ecological applications, including the effect of spectral quality on phytochrome. The RF ratio influences plant height, leaf expansion rates, and other photobiology and plant morphogenic responses.

This sensor is a research-grade, cost-effective two-channel sensor for monitoring plant light environments, including calculation of the red to far-red ratio (red photon flux density / far-red photon flux density) and far-red fraction (far-red photon flux density / sum of red and far-red photon flux densities).

Spectral Response

The red - far-red sensor has a spectral range of 645 to 665 nm ± 5 nm (red) and 720 to 740 nm ± 5 nm (far-red). The spectral responses can be seen in the graph below.

Rugged, Self-cleaning Housing

The patented domed shapped sensor head (diffuser and body) facilitates runoff of dew and rain to keep the sensor clean and minimizes errors caused by dust blocking the radiation path. Sensors are housed in a rugged, anodized aluminum body and electronics are fully-potted.

Typical Applications

Applications include monitoring plant light environments, researching plant morphogenic activity, and photobiology studies.

Mounting

TheAL-120 Solar Mounting Bracket with Leveling Platefacilitates mounting the sensor to a mast or pipe. TheAL-100 Solar Sensor Leveling Plateis designed to level the sensor while sitting on a flat surface or mounting to a surface.

Output Options

Available as an analog output or in digital SDI-12 or Modbus communication protocols.

High Quality Cable

Pigtail-lead传感器特性IP68,玛丽ne-grade stainless-steelcable connectorsbuilt directly into the sensor head to simplify sensor removal for maintenance and recalibration. Cable is shielded-twisted-pair wire with a TPR jacket for high water resistance, UV stability, and flexibility in cold conditions.

Warranty and Support

All Apogee products are backed by an industry-leading four year warranty and outstanding customer support

Specifications
Learn More

Videos
Learn More

Support Info
Learn More

S2-131-SS Red - Far-Red Sensor

S2-131-SS Red - Far-Red Sensor

$458.00

S2-431-SS SDI-12 Red - Far-red Sensor

S2-431-SS SDI-12 Red - Far-red Sensor

$558.00

S2-432-SS Modbus Digital Output Red - Far-red Sensor

S2-432-SS Modbus Digital Output Red - Far-red Sensor

$558.00

AT-100 microCache Bluetooth Micro Logger

AT-100 microCache Bluetooth Micro Logger

$319.00

AL-100: Solar Sensor Leveling Plate

AL-100: Solar Sensor Leveling Plate

$44.00

AL-120 Solar Mounting Bracket with Leveling Plate

AL-120 Solar Mounting Bracket with Leveling Plate

$64.00

AM-310: Sensor Wand

AM-310: Sensor Wand

$62.00

AC-422 Modbus to USB Converter

AC-422 Modbus to USB Converter

$150.00

More Info
